Y&H 10.2KW On/Off Grid Solar Hybrid Inverter Built-in 160A Charge Controller PV Max 500V Input DC48V to AC230V Pure Sine Wave Inverter for Home Energy Storage RV Shed Off-Grid System
Product Description【Pure sine Wave Inverter】10200W Pure sine Wave Inverter is a new all-in-one hybrid solar inverter charger, Support dual PV input, dual MPPT voltage tracking.RGB lingthing for different working mode(Purple-PV Mode;Red-Battery Mode;Blue-Utility Mode)
【TECHNICAL SPECIFICATIONS】10.2KW Hybrid Solar Inverter Max.PV Input Power: 10200W, Voltage range: 90-450Vdc, Max.PV Input VOC: 500V DC, Starting voltage >150V; The best working voltage is 300-360V;Recommended PV cable size: 10AWG, Max. charge current: 180A. Nominal Input Frequency: 50/60Hz; Output Power: 10200W, surge Capacity: 20400W.fit for 48V Lead-Acid (Seal, AGM,Gel, Flooded) and Lithium battery
【MULTIPLE CHARGING MODES】Off Grid Solar Inverter have 4 charging modes are optional, i.e. Only Solar, Mains Frist , Solar Frist and Mains & Solar hybrid charging; and 3 output modes are available, i.e. Solar Frist, Mains Frist and SBU Priority, uninterrupted power supply to meet different application requirements. And compatible to mains voltage or generator power, Auto restart while AC is recovering.
【New features】Built-in BMS function. Lithium Battery Activation, has a reactivation feature to awaken a sleeping lithium battery. The small charge current to activate the protection circuit and if a correct cell voltage can be reached, it starts a normal charge.Dual AC output, one for the main load (UPS function), one for the conventional load.
【WIDE RANGE OF USES】MPPT Inverter Charger Pure sine Wave 10200W for RV Camping Boat Home Emergency ect.. Can be accessed to a variety of household and office loads, including Oven, rice cooker, lamps, televisions, fans and other AC loads.(Be careful not to install it near the bedroom, the fan will make a sound when the inverter is running. Avoid affecting your rest)
Note: After item 37 is set to "hyd", item 01 will jump back to SUB mode instead of SBU mode.
Product DetailsBrand: | Y&H |
---|
Model #: | MPS-MAX 10.2KW-48V-M180A |
---|
Warranty: | 12 MONTHS |
---|
Size: | 10200W-48V-M160A |
---|
Dimensions: | 21.14 X 15.35 X 5.12 inches (Length X Width X Height) |
---|
Price: | $737.99 (Save 12%) |
---|
Y&H 10.2KW On/Off Grid Solar Hybrid Inverter Built-in 160A Charge Controller PV Max 500V Input DC48V to AC230V Pure Sine Wave Inverter for Home Energy Storage RV Shed Off-Grid System

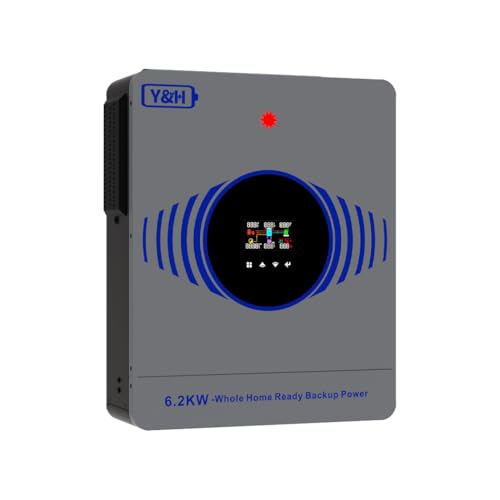

Y&H 6.2KW Solar Hybrid Inverter 48V AC220V On/Off-Grid Solar Inverter Built-in MPPT 120A Solar Charger, Two Load Output Power Max PV Power 6500W Input, Supports Batteryless
Product Description【PURE SINE WAVE INVERTER】6200W 48V Off-Grid Solar Inverter Built-in 120A MPPT Charge Controller, Pure Sine Wave Inverter Single-phase output 230VAC, 6.2kw new all-in-one inverter combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in a single package.This inverter supports battery-free operation.
【TECHNICAL PARAMETERS】120A MPPT Solar Charging Inverter, MAX. PV Array Power: 6500W, Max.PV Open Circuit Voltage: 450Vdc; Starting voltage >90V, MAX. Charging Current:120A, PV Array MPPT Voltage Range: 60~450Vdc; Cold start function(46V).
【TWO LOAD OUTPUT POWER】Setting range is from 40.0V to 46.0V for 6.2KW model. Increment of each click is 0.1V. When the battery voltage falls below the setting range, the Main OUT port stops working.Only the Second Out port will work. For areas with frequent power outages and loads that can't be blacked out, you can set the battery voltage to 46V. Keep more battery capacity for emergencies.If the battery voltage is higher than 46V, the Main OUT port will continue to work.
【One Click Restore Default Settings】6.2KW All in One MPPT inverter can restore the system settings by one key in case of setting error, avoiding the machine damage caused by setting error. with battery cold start function(46V) ,and automatic restart while AC is recovering to well protect your system.
【DIVERSIFIES USES】On/ Off-grid working mode, you can use inverter as energy storage device without power Grid (Off Grid). Maybe you will also like to reduce the household electricity bill through it (On Grid).; Can be accessed to a variety of household and office loads, including refrigerators, lamps, televisions, fans, air conditioning and other loads. 4 charging modes support: Utility first, Solar first,Solar&Utility and Battery & Solar.
For 110/120V US home appliances Devices,you can simply add a Transformer (not includes) which stepping down 220/240V AC power to 110/120V AC Power, then your 110V home appliances is also ok to use at the same time, this inverter can't output 110V power, this is a Single-phase 220V output inverter. Ensure that you operate and use our products smoothly. Contact us if you have any.
Product DetailsBrand: | Y&H |
---|
Model #: | 6.2KW 48V AC220V |
---|
Warranty: | 2 |
---|
Size: | 6200W-48V-M120A |
---|
Dimensions: | 16.5 X 12.2 X 4.33 inches (Length X Width X Height) |
---|
Price: | $439.99 |
---|
Y&H 6.2KW Solar Hybrid Inverter 48V AC220V On/Off-Grid Solar Inverter Built-in MPPT 120A Solar Charger, Two Load Output Power Max PV Power 6500W Input, Supports Batteryless
Y&H 4000W Solar Hybrid Inverter DC24V 120VAC Pure Sine Wave Battery-Free Starting Built MPPT 140A Solar Charger,6.25 inch LCD Screen and Touch Buttons
Product Description4000W Pure sine Wave Inverter is a new all-in-one hybrid solar inverter charger, Tempered glass top cover design + touch function, one key to restore the default settings. The default mode is Off Grid. You can manually enable On Grid.
4KW Hybrid Solar Inverter Max.PV Input Power: 5600W, Voltage range: 55-350Vdc, Max. PV Input VOC: 350V DC, Starting voltage >90V;The best working voltage is 55-280V;Max. charge current: 140A. Nominal Input Frequency: 50/60Hz;Output Power: 4000W, surge Capacity: 8000w. fit for 24V Lead-Acid (Seal, AGM,Gel, Flooded) and Lithium battery
Off Grid Solar Inverter have 4 charging modes are optional, i.e. Only Solar, Mains First , Solar First and Mains & Solar hybrid charging;and 3 output modes are available, i.e. Solar First, Mains First and SBU Priority, uninterrupted power supply to meet different application requirements. And compatible to mains voltage or generator power, Auto restart while AC is recovering.
Built-in BMS function.Lithium Battery Activation, has a reactivation feature to awaken a sleeping lithium battery. Inverter work easy to heat, traditional design of 2 cooling fans, Y&H design of 3 fans, better cooling function, improve work efficiency, prolong the life of the inverter.
Battery-less startup design significantly reduces system purchase cost. Battery installation, maintenance and replacement costs are eliminated. Direct utilization of photovoltaic power, suitable for daytime high energy consumption scenarios, especially in areas where solar energy resources are abundant and demand for electricity is concentrated in the daytime (it is recommended to match the grid input, which automatically switches to utility power to supplement when there is insufficient photovoltaic power generation)
Product DetailsBrand: | Y&H |
---|
Model #: | MPS-VX 4KW-24V-110V |
---|
Warranty: | 2 Year Manufacturer |
---|
Size: | 4000W-24V-120Vac |
---|
Color: | Blue |
---|
Dimensions: | 18.43 X 12.52 X 6.26 inches (Length X Width X Height) |
---|
Price: | $399.99 (Save 5%) |
---|
Y&H 4000W Solar Hybrid Inverter DC24V 120VAC Pure Sine Wave Battery-Free Starting Built MPPT 140A Solar Charger,6.25 inch LCD Screen and Touch Buttons
Y&H 1000W Grid Tie Inverter Power Limiter DC25-60V Solar Input AC110V/240V Auto Switch
Product Description【Input Requirements】The Y&H grid tie inverter DC input 22-60V (startup voltage 26V), Voc (solar panel) must not exceed 60V to ensure good output efficiency, Please ensure that the solar panel power is not less than 200W and check the open-circuit voltage to be between 38-60V (Voc).
【Battery Power Supply】This DC 22-60V grid tie solar inverter can only be powered by 36V/48V batteries, and when using batteries, please use a circuit breaker, The inverter features a battery discharge power mode that can automatically adjust the depth of discharge for the battery bank.
【MPPT Technology】The inverter utilizes innovative MPPT technology with an efficiency of up to 99% and a peak conversion rate of 80%. It is necessary to use solar panels of the same specifications, and the inverter comes with a limiter sensor, providing only the power required for the load. The controller wiring should not exceed 66 feet.
【LCD Display】The LCD screen can display daily power generation, total power generation, real-time grid waveform, real-time solar system voltage and current, real-time power, internal temperature, date, and time. To meet higher power usage requirements, this grid-tie inverter can be stacked, for example, using 4 grid-tie inverters stacked equals 1000W, equivalent to 4000W, with no limit on the number of stacked units.
【Output Connection Precautions】This grid-tie inverter is only suitable for connecting to the grid output and cannot directly power AC loads. Ensure correct connection of positive and negative terminals and tighten the DC terminals of the inverter to avoid loosening and short circuits. Do not use the solar controller load port to connect to the inverter.
Product DetailsBrand: | Y&H |
---|
Model #: | L2-1000W-DC22-60V-B |
---|
Size: | SUN-1000W-DC25-60V |
---|
Color: | Black |
---|
Price: | $325.99 (Save 7%) |
---|
Y&H 1000W Grid Tie Inverter Power Limiter DC25-60V Solar Input AC110V/240V Auto Switch
Y&H Solar Inverter Remote Monitoring Data Module, Inverter w-i fi Communication Interface
Product Description【REMOTELY CONTROLLED】The Monitoring data module of the solar inverter's all-in-one machine allows for remote monitoring and control. Users can easily access and manage the inverter through the app,
【STABLE PERFORMANCE】Due to its stable performance,as the interface for the inverter to communicate with the outside world
【Applicable models】This module is suitable for the following Y&H solar inverter models: SML-2000W-12V-M80A, SML-3000W-24V-M80A, NM-ECO-LV-3.6K-110V, MPS-VIII ECO 4.2KW, MPS-VIII ECO 6.2KW, SUN-4.2KW-HV, SUN-6.2KW-HV, MPS-MAX 10.2KW-48V-M180A.
Important note: This module is only suitable for our Y&H model inverters. To ensure that your inverter can use the remote monitoring module normally, please be sure to confirm that your inverter model is compatible with this module before purchasing. Incompatible models will not work properly.
Product DetailsBrand: | Y&H |
---|
Model #: | VM Plus |
---|
Warranty: | 1 |
---|
Size: | Inverter communication Module |
---|
Price: | $49.99 |
---|
Y&H Solar Inverter Remote Monitoring Data Module, Inverter w-i fi Communication Interface
Y&H 3000W 48V Hybrid Solar Inverter DC to 120V/240V AC Split Phase Inverter with 80A MPPT Controller Pure Sine Wave Inverter 500VDC,Parallel 12 inverters,Support Batteryless,for Home Energy Storage
Product Description【Advanced Pure Sine Wave Solar Inverter】Experience the quality and performance of Y&H 3000W DC 48V hybrid solar inverter. This system outputs pure sine waves under single-phase, split phase, and three-phase 120/208V/240Vac formats. Built-in with an 80A MPPT solar charger controller, the system supports varying power setups, including 48V 100AH lead acid or lithium battery, or batteryless mode. It also has parallel capabilities of up to 12 inverters.
【Flexible Parallel Installation】This inverter offers two distinct parallel operating modes. In single-phase operation, you can run up to 12 units parallely with a maximum output power of 36KW/36KVA. For substantial power requirements, like three-phase equipment, one phase can handle up to 30KW/30KVA, Maximum 12 units work together to support three-phase equipment. 10 units support one phase maximum. and one phase can be up to 30KW/30KVA.
【Efficient Charging and Discharging Modes】With four unique charging and two output modes, this inverter offers extensive functionality. Choose from Solar Only, Mains Priority, Solar Priority and Hybrid Charging (Mains & Solar) as per your needs. Mains Bypass and Inverter Output ensure an uninterrupted power supply. The Anti-backflow Grid Connection allows operation without a battery, making this product suitable for on-grid power generation.
【Comprehensive Protection Features】Ensuring optimal performance is our dual cooling fans, efficiently dissipating heat from the system. The inverter's resilience against dust, corrosion, and general wear and tear extends its lifespan. Equipped with an LCD screen and three LED indicators, you can monitor the system's data and status in real-time. Moreover, users can rely on exhaustive protections against issues like short circuit, overload, under voltage, and reverse current.
【Intelligent All-In-One hybrid solar Inverter】 This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar chargerpriority, and acceptable input voltage based on different applications. This inverter can power all kinds of appliancs in home or offic
NOTE: If this unit is bundled with share current cable and parallel cable, this inverter is default supported parallel operation.
Product DetailsBrand: | Y&H |
---|
Model #: | 716963268530 |
---|
Warranty: | 2 |
---|
Size: | 3KVA-48V-110V-M80A |
---|
Color: | White |
---|
Price: | $539.99 |
---|
Y&H 3000W 48V Hybrid Solar Inverter DC to 120V/240V AC Split Phase Inverter with 80A MPPT Controller Pure Sine Wave Inverter 500VDC,Parallel 12 inverters,Support Batteryless,for Home Energy Storage
Y&H 1400W Grid Tie Inverter Stackable MPPT Pure Sine Wave DC30-45V Solar Input AC110/120V Power Output fit for 24V 36V PV Panel【Voc34-46V】
Product DescriptionGrid Tie Inverter MPPT range: 30V - 39V.If the DC connection is loose and causes a short circuit, then smoke may be emitted.The inverter adopts aluminum alloy casing, so there is no fire.
Solar Grid Tie Inverter - Vmp(of a solar panel) must be in the MPPT range to ensure the good output efficiency
Grid Tie Solar Inverter - Creative MPPT tech makes efficiency higher than 99%. Reaction more sensitive and MPPT locking faster
Stackable Grid Tie Inverter - Parallel modular components design (Stackable use) is convenient for systems setting, flexible combination and system scalability.
Grid Tie Inversor - MPPT Function/Over Current Protection/Over Temperature Protection/Reverse Polarity Protection/Island Protection/Stackable【Y&H provides 30 days free return and 1 year warranty. If you encounter product problems, please contact the seller's support.】
Please note: Do not use it together with a bidirectional meter in the local power grid. This is because the excess power from the inverter will be fed back into the grid, resulting in increased electricity costs. For a bidirectional power grid, we recommend using our SUN-Inverter series.
Product DetailsBrand: | Y&H |
---|
Model #: | Voc34-46V |
---|
Size: | 1400W-Voc34-46V |
---|
Price: | $142.99 |
---|
Y&H 1400W Grid Tie Inverter Stackable MPPT Pure Sine Wave DC30-45V Solar Input AC110/120V Power Output fit for 24V 36V PV Panel【Voc34-46V】
Y&H Grid Tie Inverter 600W Stackable DCDC15-28V PV Input AC110V MPPT Pure Sine Wave Micro Inverter fit for 12V Solar Panel/24V Battery
Product Description600W Grid Tie Inverter - MPPT Range 15-22V.【DO NOT use solar controller load ports to connect to the inverter】If you have any doubts before purchasing,please contact us immediately.We can help you choose the right machine.
Grid Tie Solar Inverter - Vmp(of a solar panel) must be in the MPPT range to ensure the good output efficiency【The grid tie inverter generates heat during operation. It is recommended to install in a ventilated, dry, and cool place. If the local weather is very hot, a small fan can be used to dissipate heat from the inverter.】
Solar Grid Tie Inverter - Fit For 12V Solar Panel 21V(Voc) 18V (Vmp)【Extension of solar panel cables. It is easy to cause the positive and negative connections to be reversed. The LED will not light up after connection.】
Solar Inverter - Max Power Point Tracking and Stackable,Island Protection【The Grid Tie inverter is equipped with banana plugs for easy connection. We have tested that the banana plugs are not firmly connected. The DC terminal will short-circuit. The instantaneous voltage will melt the DC column.】
Micro Inverter - Over Temperature Protection,Intelligent cooling fan management.If the DC connection is loose and causes a short circuit, then smoke may be emitted.The inverter adopts aluminum alloy casing, so there is no fire.
Please note: Do not use it together with a bidirectional meter in the local power grid. This is because the excess power from the inverter will be fed back into the grid, resulting in increased electricity costs. For a bidirectional power grid, we recommend using our SUN-Inverter series.
Product DetailsBrand: | Y&H |
---|
Model #: | GTI-600W-18V-110V-S |
---|
Size: | For Voc 20-24V |
---|
Color: | Silver |
---|
Dimensions: | 12.2 X 8.8 X 4.9 inches (Length X Width X Height) |
---|
Price: | $95.99 |
---|
Y&H Grid Tie Inverter 600W Stackable DCDC15-28V PV Input AC110V MPPT Pure Sine Wave Micro Inverter fit for 12V Solar Panel/24V Battery
Y&H 180W MPPT Grid Tie Micro Inverter PV Input DC16-26V AC110V/220V Output Home Use Small Solar Power System for 12V Solar Panel
Product DescriptionGrid Tie Inverter MPPT Range 15.5-25V
Working voltage Vmp (of a solar panel) must be in the MPPT range to ensure the good output efficiency
Grid Tie Solar Inverter PV Panel Voltage: Vmp16-21V; Voc20-24V
Solar panel power cannot exceed 180W
Micro Grid Tie Inverter Doesn't work with battery.Only use solar panels as a DC power source.
180W Grid Tie inverter is a compact unit,which directly converts direct current into alternating current for powering appliances and/or office equipments and connecting to utility grid.The AC output from Smart Micro inverter is synchronized and in-phase with the utility grid.
Product DetailsBrand: | Y&H |
---|
Model #: | GMIW-180L |
---|
Warranty: | 2 |
---|
Size: | GMIW-180W |
---|
Price: | $51.99 |
---|
Y&H 180W MPPT Grid Tie Micro Inverter PV Input DC16-26V AC110V/220V Output Home Use Small Solar Power System for 12V Solar Panel
Y&H 1000W Grid Tie Inverter Stackable MPPT Pure Sine Wave DC15-28V Solar Input AC90-140V Output for 12V Solar Panel
Product DescriptionGrid Tie Inverter MPPT Range 15.5-23V【DO NOT use solar controller load ports to connect to the inverter.This is On Grid. The AC output needs to be connected to the grid.】
Vmp(of a solar panel) must be in the MPPT range to ensure the good output efficiency【Red / green lights flash alternating. This is the solar panel power or voltage is too low】
200W-1000W Solar Panel:Vmp: 18-21V, Voc: 20-24V【Please do not use other voltage input, for example: (10.8V-15V)and (25-30V)】The DC positive and negative connections are reversed, and the inverter Led will not light up.
Micro Grid Tie Inverter Doesn't work with 12V battery【Each time you move the inverter, tighten the DC connection terminals. Avoid short circuit of DC terminal due to loose connection】
Micro Inverter Max Power Point Tracking and Stackable,Island Protection. If the DC connection is loose and causes a short circuit, then smoke may be emitted.The inverter adopts aluminum alloy casing, so there is no fire.
Please note: Do not use it together with a bidirectional meter in the local power grid. This is because the excess power from the inverter will be fed back into the grid, resulting in increased electricity costs. For a bidirectional power grid, we recommend using our SUN-Inverter series.
Product DetailsBrand: | Y&H |
---|
Model #: | GTI-1000W-18V-110V-S |
---|
Size: | 12V Solar Panel Voc20-24V |
---|
Color: | Silver |
---|
Dimensions: | 16.3 X 8.9 X 6.1 inches (Length X Width X Height) |
---|
Price: | $125.99 |
---|
Y&H 1000W Grid Tie Inverter Stackable MPPT Pure Sine Wave DC15-28V Solar Input AC90-140V Output for 12V Solar Panel
